AD150-51T / Max pc Exhaust Certified Control Panel Ventilation Fans

Air Flow 150 ~ 229 CFM
Static Pressure 0.34 ~ 0.70 inch-H2O
Noise 46 ~ 58 dB(A)
Bearing Ball
Weight 792g
Function Function type is optional
P: Lock Protection
A: Rotation Detector
Specification
Item Code
AD150-51T
Housing
Thermoplastic PBT, UL94V-0
Impeller
Thermoplastic PBT, UL94V-0
Motor
DC Brushless Fan Motor
Termination
Lead Wire UL 1007 AWG#22
Red Wire: Positive Voltage (V+)
Black Wire: Negative Voltage (V-)
Yellow Wire: Function
Operating Temperature
-20℃ to +80℃
Item Code: AD12V150-51T-FPG-B5-N1P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
12V NONE 1.90 23 3400 229 6.5 0.7 58 NONE
Item Code: AD12V150-51T-FPG-B5-N2P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
12V NONE 1.40 17 3000 206 5.8 0.6 56 NONE
Item Code: AD12V150-51T-FPG-B5-N3P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
12V NONE 0.86 11 2600 174 4.9 0.44 52 NONE
Item Code: AD12V150-51T-FPG-B5-N4P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
12V NONE 0.60 7 2200 150 4.2 0.34 46 NONE
Item Code: AD24V150-51T-FPG-B5-N1P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
24V NONE 0.90 22 3400 229 6.5 0.7 58 NONE
Item Code: AD24V150-51T-FPG-B5-N2P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
24V NONE 0.65 16 3000 206 5.8 0.6 56 NONE
Item Code: AD24V150-51T-FPG-B5-N3P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
24V NONE 0.43 11 2600 174 4.9 0.44 52 NONE
Item Code: AD24V150-51T-FPG-B5-N4P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
24V NONE 0.30 7 2200 150 4.2 0.34 46 NONE
Item Code: AD48V150-51T-FPG-B5-N1P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
48V NONE 0.52 25 3400 229 6.5 0.7 58 NONE
Item Code: AD48V150-51T-FPG-B5-N2P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
48V NONE 0.40 19 3000 206 5.8 0.6 56 NONE
Item Code: AD48V150-51T-FPG-B5-N3P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
48V NONE 0.28 13 2600 174 4.9 0.44 52 NONE
Item Code: AD48V150-51T-FPG-B5-N4P
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
48V NONE 0.19 9 2200 150 4.2 0.34 46 NONE

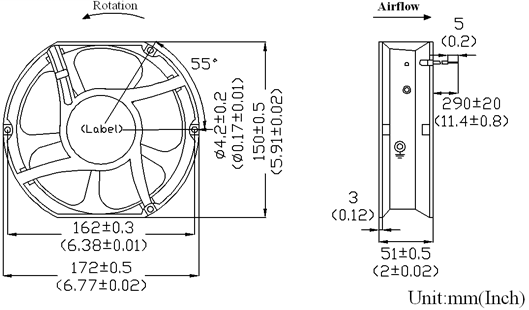

Outline Drawing

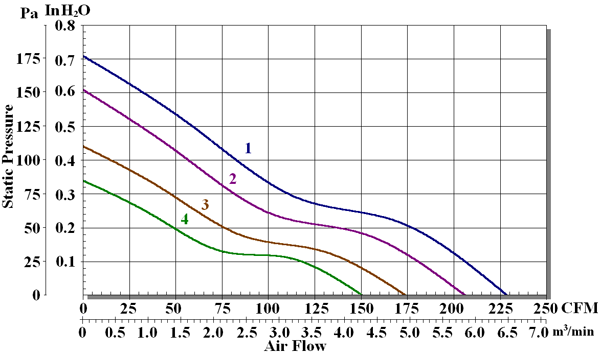

Charateristic Curve
