Professional Centrifugal Blowers 120x98mm Manufacturer

PRODUCTS
SEARCH PRODUCT

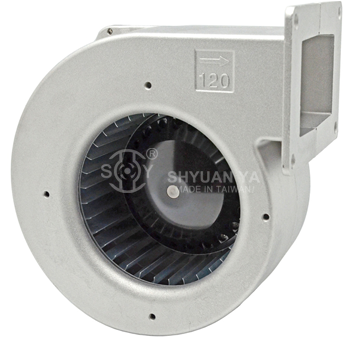

Centrifugal Blowers

CA120-98T / 120x98mm

Air Flow 100 ~ 165 CFM
Static Pressure 1.34 ~ 1.86 inch-H2O
Noise 60 ~ 61 dB(A)
Bearing Dual Ball Bearing, Permanently Lubricated
Safety Thermally Protected (Auto Restart)
Weight 1910g
Why Choose Us
Centrifugal Blower

Thermally Protection with Better Insulation

One body injected insulation case provides better insulation between coil and silicon steel. Thermal protector prevents motor overheating.
Centrifugal Blower

Electricity Saving

The conversion efficiency of our fans is generally about 10% higher than other manufacturers by applying Advanced Geometry design.
Centrifugal Blower

Longer products lifetime

The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy to all series of fans.
Centrifugal Blower

Durable Impeller Structure

The impeller of centrifugal blower is made by galvanized sheet-steel providing durable construction.
Product Video

Specification
Item Code
CA120-98T
Housing
Die-cast Aluminum Housing
Impeller
Galvanized Sheet Steel Impeller
Motor
Capacitor-Run Induction and
External Rotor Motor

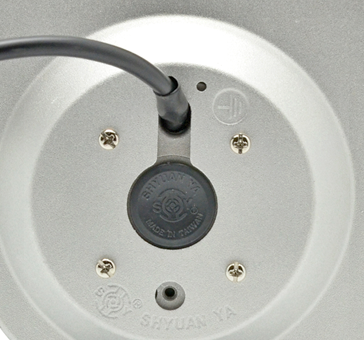

Termination
Lead Wire
Voltage Range
85VAC to 125VAC for 115V Type
185VAC to 245VAC for 230V Type
Insulation
Class “B” or “F”
Operating Temperature
-20℃ to +60℃
Item Code: CA1V120-98T-FMG-B33-2C
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
115V 50/60 0.72/0.80 78/94 2300/2450 155/165 4.39/4.67 1.34/1.86 60/61 7μF/200VAC
Item Code: CA2V120-98T-FMG-B33-2C
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
230V 50/60 0.35/0.41 78/94 2300/2450 155/165 4.39/4.67 1.34/1.86 60/61 2μF/400VAC
Item Code: CA1V120-98T-FMG-B33-4C
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
115V 50/60 0.34/0.40 39/44 1650/1600 105/100 2.97/2.83 1.14/1.46 53/52 5μF/200VAC
Item Code: CA2V120-98T-FMG-B33-4C
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
230V 50/60 0.17/0.20 39/44 1650/1600 105/100 2.97/2.83 1.14/1.46 53/52 1μF/400VAC

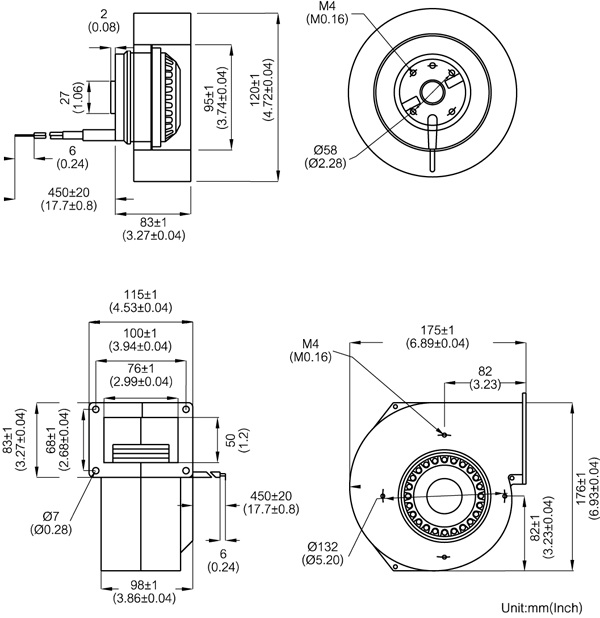

Outline Drawing

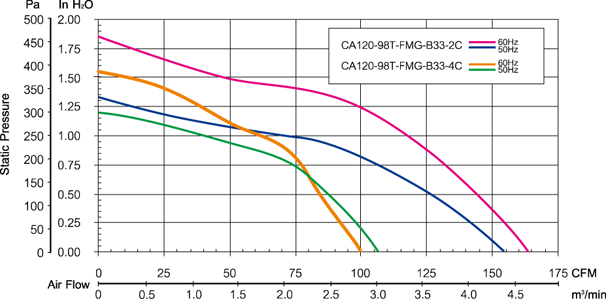

Charateristic Curve

Manufacturing Process
Step 1. Motor Winding
Step 1. Motor Winding
Winding coils to fan motors
Step 2. Motor Testing
Step 2. Motor Testing
Testing ohm value of coils.
Step 3. Motor Connection
Step 3. Motor Connection
Connecting lead wires to fan motors
Step 4. Hi-POT & Impulse Testing
Step 4. Hi-POT & Impulse Testing
Testing insulation between coils and bottom cases
Step 5. Motor Mounting
Step 5. Motor Mounting
Mounting fan motors to bottom cases
Step 6. Dynamic Balancing Machine
Step 6. Dynamic Balancing
Balancing impellers
Step 7. Impeller Assembling
Step 7. Impeller Assembling
Assembling impellers to fan motor
Step 8. Pre-Delivery Inspection
Step 8. Pre-Delivery Inspection
Testing vibration、current、wattage of fans
Step 9. Pre-Delivery Hi-POT Testing
Step 9. Pre-Delivery Hi-POT Testing
Testing insulation between fan motors and bottom cases.
Step 10. Packing
Step 10. Packing
Company Overview

Professional & Customized Service

SHYUAN YA Group was founded in 1982 with more than 30 years’ experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers.
Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.
1982 Set Up
30 years experience Manufacturing experience
Up to 85% Self-Manufacturing
Assembling Department

zoom

01 Assembling Department
Die-Casting Department

zoom

02 Die-Casting Department
Molding Department

zoom

03 Molding Department
Assembling Department

zoom

04 Plastic Injection Department
Die-Casting Department

zoom

05 R&D Department
Molding Department

zoom

06 The Apperance of our Factory
Inspection Equipments

Quality Stability & Reliability

To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA.
The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM.
100% products inspections High standard
Down to 10.0 dBA Background noise
Up to 1,300 CFM Measurement range
Semi-Anechoic Room

zoom

01 Semi-Anechoic Room

Testing fan noise level. Background noise is down to 10.0 dBA.

Air Flow Chamber

zoom

02 Air Flow Chamber

Measurement capacity range up to 1,300 CFM.

Environmental Test Room

zoom

03 Environmental Test Room

Measuring fan life by assuming certain conditions of fan life distribution.

Dynamic Balancing Machine

zoom

04 Dynamic Balancing Machine

The Balance quality grade for rigid rotors/impeller is G6.3.

Hi-POT Tester

zoom

05 Hi-POT Tester

Using 2,000 Vac to check the insulation of fans.

Pre-Delivery Inspection

zoom

06 Pre-Delivery Inspection

Checking for Current, Balance, Abnormal Sound of fans.

Production Equipments

Short Production Time & Prompt Delivery

SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment. Our production lines include plastic injection, motor winding, and die casting processing lines.
Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.
Over two million US dollars Investment funds
16 lines Assembling lines
4~6 weeks Mass Production
Aluminum Alloys Melting furnace

zoom

01 Aluminum Alloys Melting furnace

Melting and holding aluminum in the central furnace.

Die-Casting Machine

zoom

02 Die-Casting Machine

Automatic producing housings and rotors of fans.

Plastic Injection Machine

zoom

03 Plastic Injection Machine

Automatic producing fan impellers and plastic fan components.

Motor Winding Machine

zoom

04 Motor Winding Machine

Automatic winding shaded pole fan motors.

External Rotor Motor Winding Machine

zoom

05 External Rotor Motor Winding Machine

Automatic winding external Rotor fan motors.

CNC Lathe

zoom

06 CNC Lathe

Processing all rotors and stators of fans.

Automatic Drilling Machine

zoom

07 Automatic Drilling Machine

Automatic drilling the screw threads of fixing holes.

Certification
Certification
  • ShyuanYa have met the worldwide standards and have qualified by ISO 9001:2015 and CQC quality system.
  • All our products are approved by UL (E184769)/ CUL/ CE , as well as in compliance with RoHS requirement.
