DC Centrifugal Fans

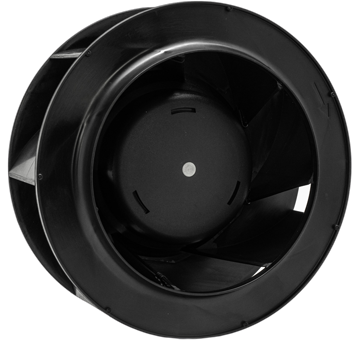

BD190-95T / 190x95mm

Air Flow 470 CFM
Static Pressure 1.77 Inch-H2O
Noise 71dB(A)
Bearing Dual Ball Bearing, Permanently Lubricated
Safety Reverse polarity and Lock Protection
Weight 1100g
Technical Features Control Input 0-10 VDC / PWM, Tach Output
Specification
Item Code
BD190-95T
Impeller
Plastic PA (Polyamide Glass-fiber Reinforced)
Motor
DC Brushless Fan Motor
Termination
Lead Wire
Voltage Range
16 ~ 28 VDC for 24V Type
36~ 57 VDC for 48V Type
Insulation
Class “B”
Operating Temperature
-25°C ~ +60°C
Item Code: BD24V19095T-B7-1BA
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
24 VDC NONE 3.3 79.2 3000 ± 10% 470 13.31 1.77 71 NONE
Item Code: BD48V19095T-B7-1BA
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
48 VDC NONE 1.7 81.6 3000 ± 10% 470 13.31 1.77 71 NONE

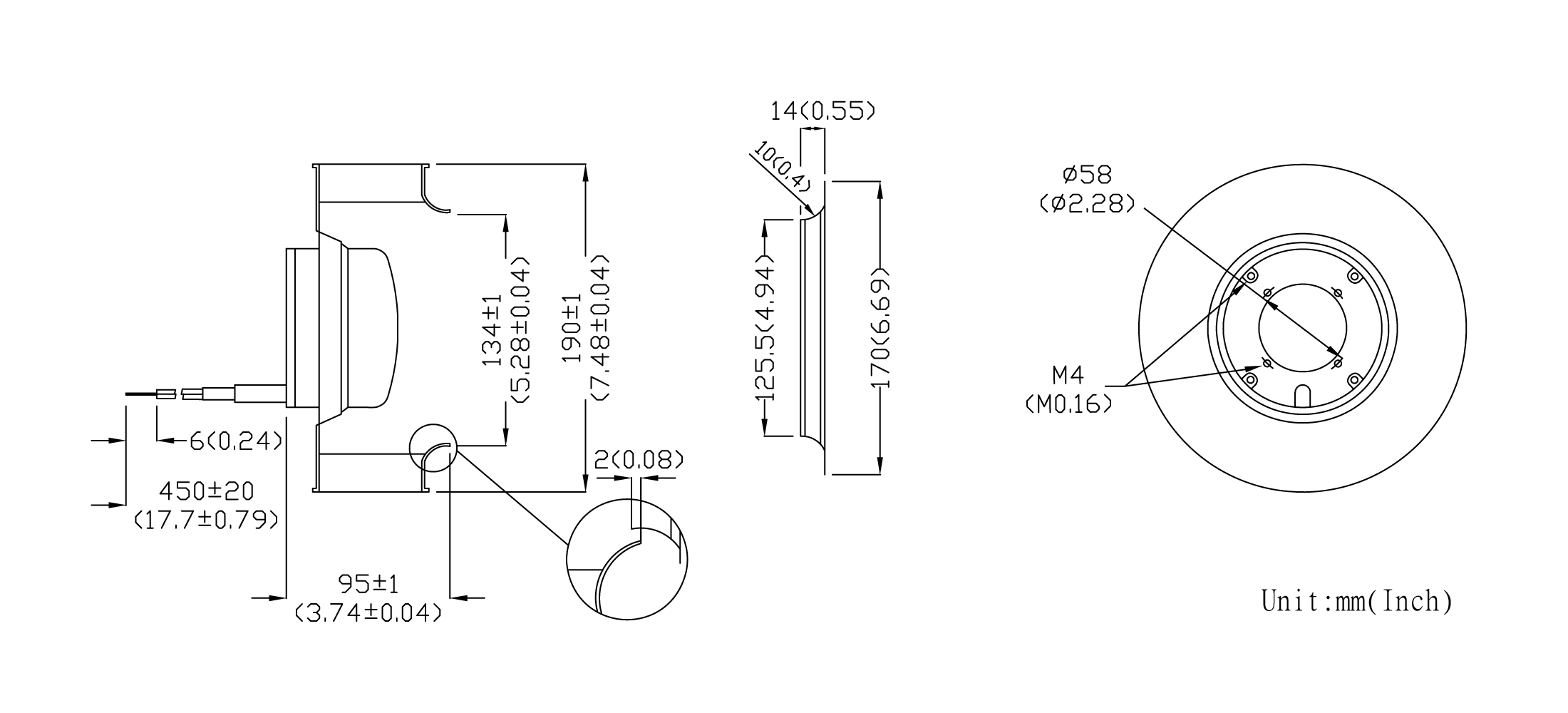

Outline Drawing

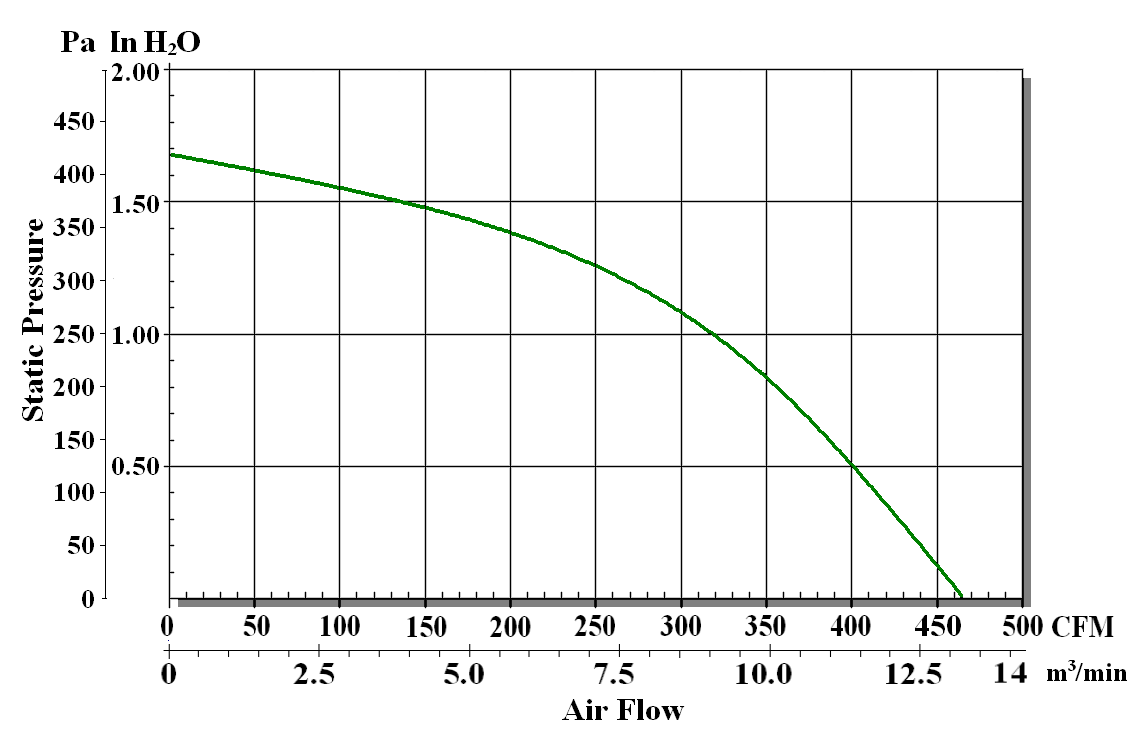

Charateristic Curve
