DC Centrifugal Fans

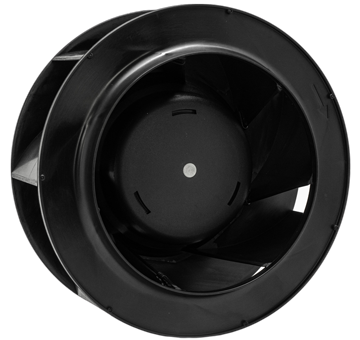

BD190-84T / 190x84mm

Air Flow 430 CFM
Static Pressure 1.76 Inch-H2O
Noise 72dB(A)
Bearing Dual Ball Bearing, Permanently Lubricated
Safety Reverse polarity and Lock Protection
Weight 1100g
Technical Features Control Input 0-10 VDC / PWM, Tach Output
Specification
Item Code
BD190-84T
Impeller
Plastic PA (Polyamide Glass-fiber Reinforced)
Motor
DC Brushless Fan Motor
Termination
Lead Wire
Voltage Range
16 ~ 28 VDC for 24V Type
36~ 57 VDC for 48V Type
Insulation
Class “B”
Operating Temperature
-25°C ~ +60°C
Item Code: BD24V19084T-B7-1BA
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
24 VDC NONE 3.7 88.8 3000 ± 10% 430 12.18 1.76 72 NONE
Item Code: BD48V19084T-B7-1BA
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
48 VDC NONE 1.75 84 3000 ± 10% 430 12.18 1.76 72 NONE

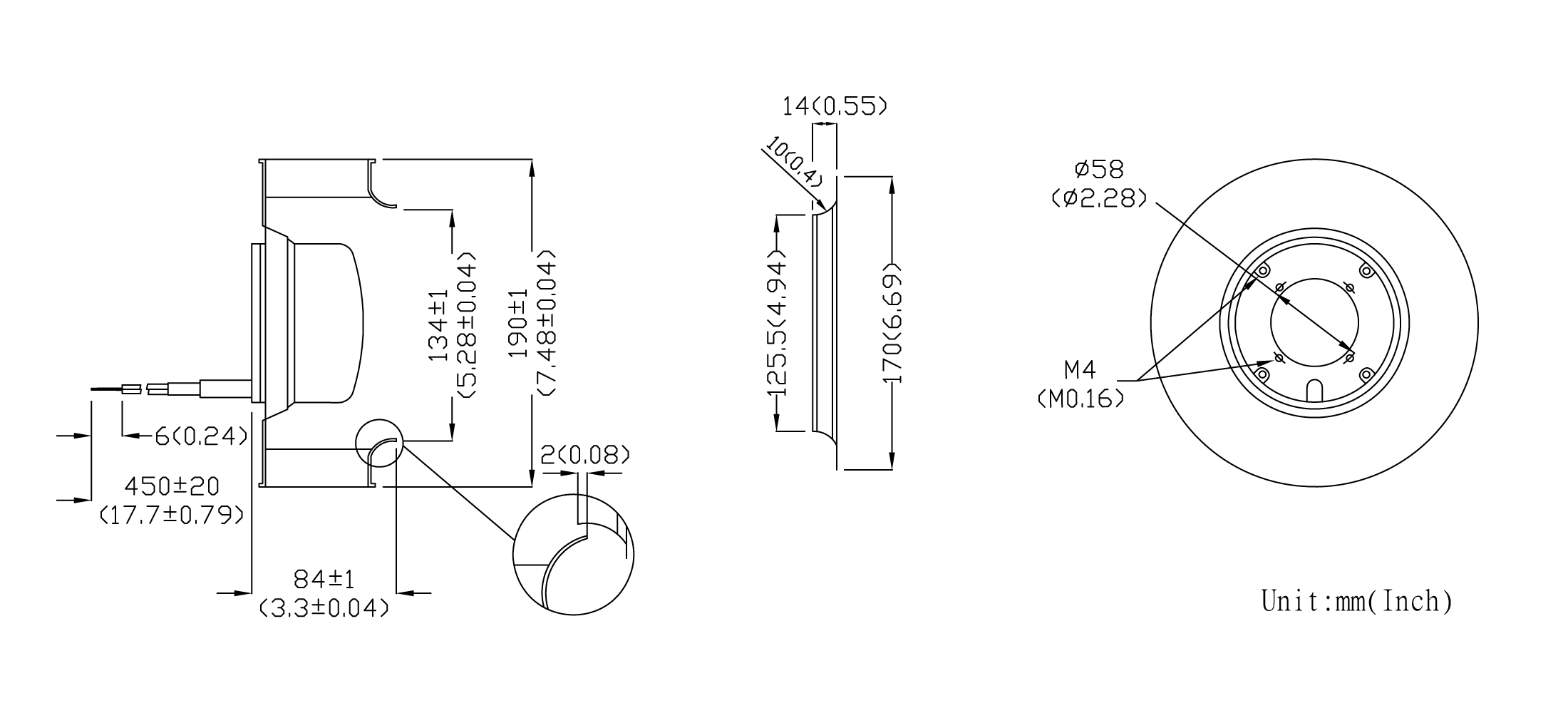

Outline Drawing

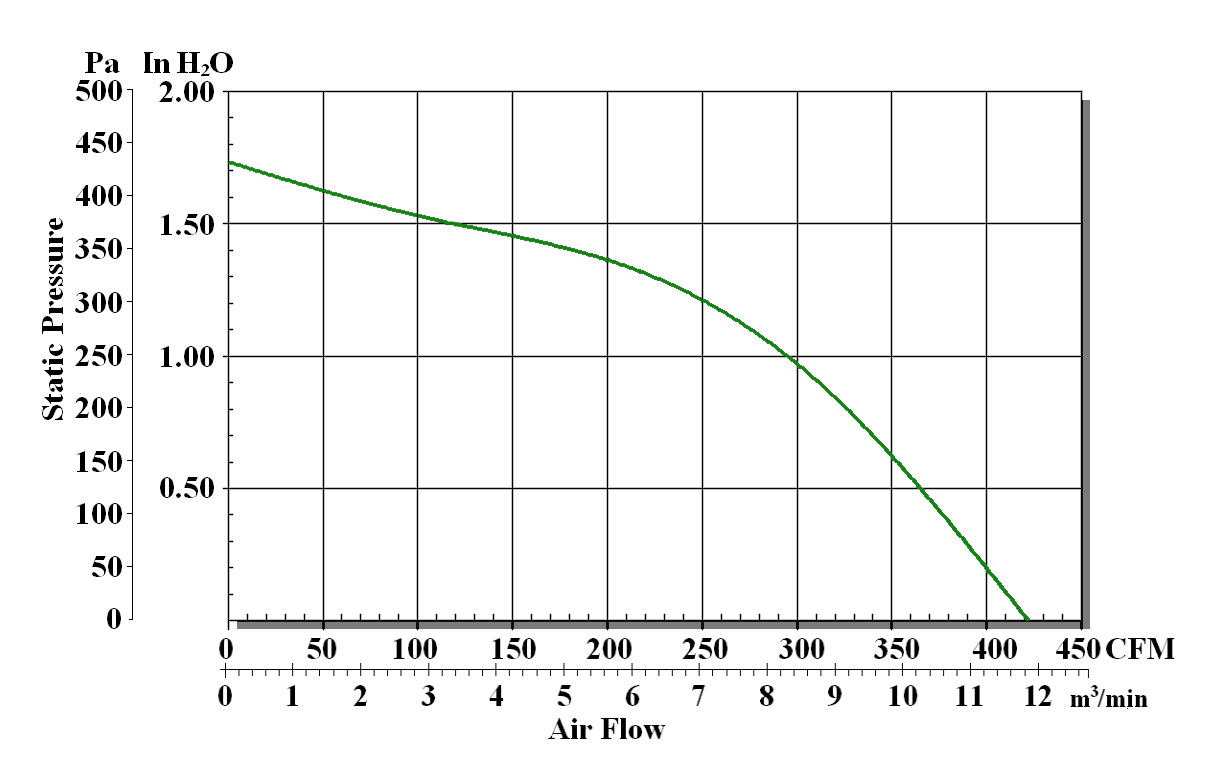

Charateristic Curve
