AC Centrifugal Fans

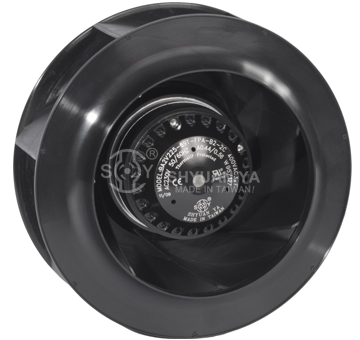

BA225-69T / 225x69mm

Air Flow 460 ~ 525 CFM
Static Pressure 1.96 ~ 2.67 inch-H2O
Noise 68 ~ 71 dB(A)
Bearing Dual Ball Bearing, Permanently Lubricated
Safety Thermally Protected (AutoRestart)
Weight 1420g
Why Choose Us
Centrifugal fans

Thermally Protection with Better Insulation

One body injected insulation case provides better insulation between coil and silicon steel. Thermal protector prevents motor overheating.
Centrifugal fans

Electricity Saving

The conversion efficiency of our fans is generally about 10% higher than other manufacturers by applying Advanced Geometry design.
Centrifugal fans

Longer products lifetime

The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy to all series of fans.
Centrifugal fans

Stronger Impeller Structure

One body injected impeller has stronger structure and better balance compared with impeller mounted with a metal plate.
Product Video

Specification
Item Code
BA225-69T
Impeller
Plastic PA (Polyamide Glass-fiber Reinforced)
Motor
Capacitor-Run Induction and
External Rotor Motor
Termination
Lead Wire
Voltage Range
85VAC to 125VAC for 115V Type
185VAC to 245VAC for 230V Type
Insulation
Class “B” or “F”
Operating Temperature
-20℃ to +70℃
Item Code: BA1V225-69T-FPA-B2-2C
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
115V 50/60 0.91/1.03 95/119 2600/3000 460/525 13.03/14.87 1.96/2.67 68/71 12μF/200VAC
Item Code: BA2V225-69T-FPA-B2-2C
Rated
Voltage
Frequency
(Hz)
Rated
Current(A)
Input
Power(W)
Speed
(RPM)
Air Flow
(CFM)
Air Flow
(m3/min)
Static Pressure
(inch-H2O)
Noise
dB(A)
Capacitor
(uF)
230V 50/60 0.46/0.53 95/119 2600/3000 460/525 13.03/14.87 1.96/2.67 68/71 3μF/400VAC
Outline Drawing

Charateristic Curve

Related Products
Manufacturing Process
Step 1. Motor Winding
Step 1. Motor Winding
Winding coils to fan motors
Step 2. Motor Testing
Step 2. Motor Testing
Testing ohm value of coils.
Step 3. Motor Connection
Step 3. Motor Connection
Connecting lead wires to fan motors
Step 4. Hi-POT & Impulse Testing
Step 4. Hi-POT & Impulse Testing
Testing insulation between coils and bottom cases
Step 5. Motor Mounting
Step 5. Motor Mounting
Mounting fan motors to bottom cases
Step 6. Dynamic Balancing Machine
Step 6. Dynamic Balancing
Balancing impellers
Step 7. Impeller Assembling
Step 7. Impeller Assembling
Assembling impellers to fan motor
Step 8. Pre-Delivery Inspection
Step 8. Pre-Delivery Inspection
Testing vibration、current、wattage of fans
Step 9. Pre-Delivery Hi-POT Testing
Step 9. Pre-Delivery Hi-POT Testing
Testing insulation between fan motors and bottom cases.
Step 10. Packing
Step 10. Packing
